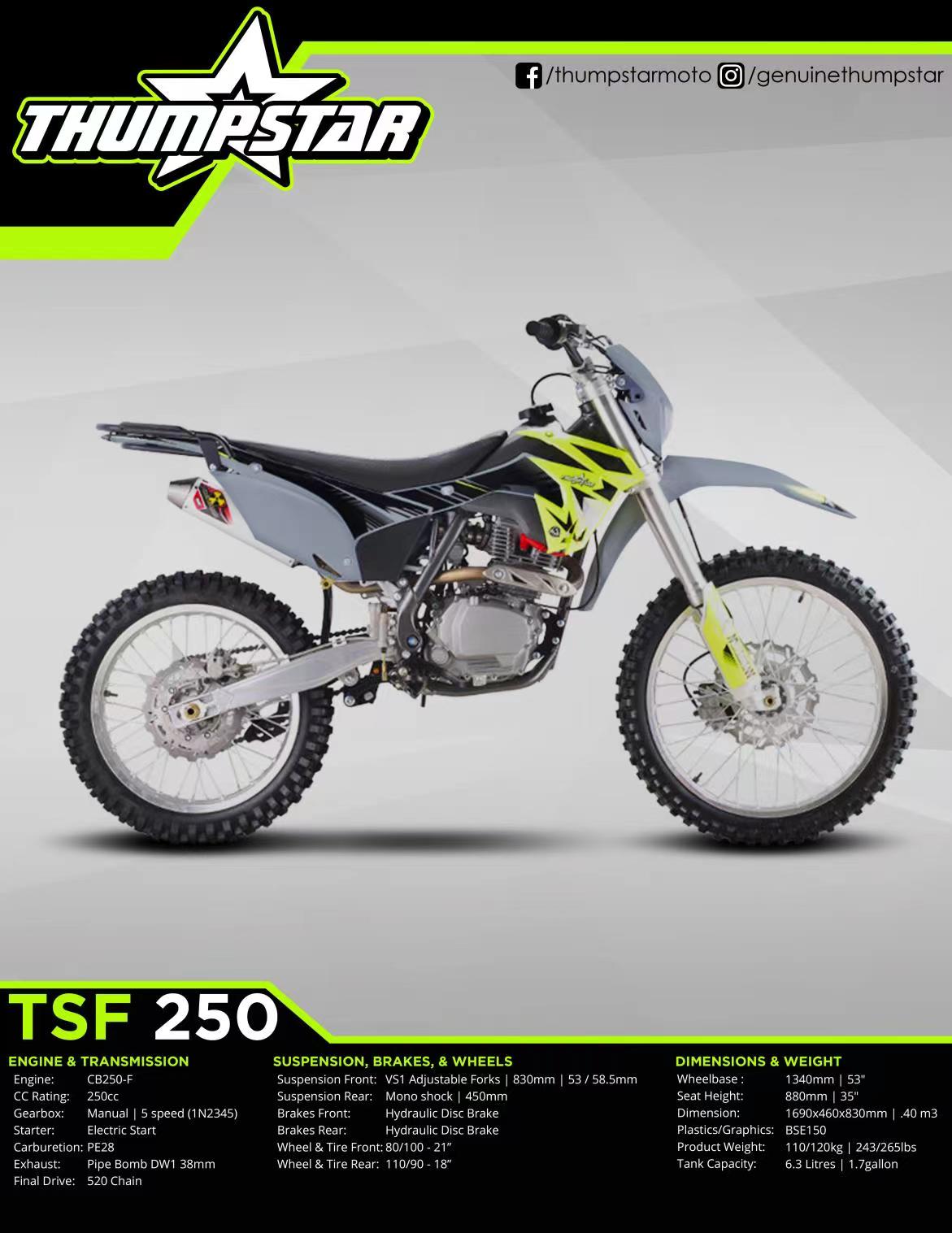

TSF 250cc X3
In the frame department we have simply taken what works from our proven TSX230 and added a few tweaks here and there for the new X3 format, a sturdy well balanced frame makes handling the trails a treat and keeping that nimble feeling that you get on a little bike.
Using what we learned in development of our AK7 wheel design, our trail bikes too now have stronger wheels with a 7000 series alloy rim, cast aluminium hubs, large bearings, and stainless spokes for reliability.
VS1 Front Forks
The continuous development of our VS1 suspension system has now allowed us to add VS1 to our latest range of Trail class bikes. Updated triple clamps & new valving allow the front end to handle on all the trails. Comfortable and smooth while not forgetting to let you feel the trail and maintain stability on the more technical tracks.
A redesigned frame came with requirements for a new exhaust header. The new head pipe from Thumpstar allows exhaust gasses to expand, cool, and ramp back up at a higher velocity when exiting. This results in a greater bottom, and low-end response while keeping the tuning in check for the top end.
Swingarm and Linkage developments
Updated X3 linkage geometry helps keep your rear shock in check for smooth rides over rough terrain and putting the power to the trail when needed. Ride the trails for longer, in more comfort with progressive rear shock performance.
CB Electric Start
Our famous TY engine in 2 sizes TSF150 and TSF230 maintains the strength and reliability found within our 1st full size bike (TSX230) now in a trail specific format.
For the X3 TSF250, we have added extra Thump, larger capacity and more power while maintaining the reliability factor that the CB engine is well known for.
All of our new bikes come equipped with redesigned looms and electronics. We have done away with single flimsy wires and connectors, and replaced them with heavy duty multi core wiring, and sturdy connectors. Accompanied by water proof plugs and electronics such as the Revking CDI, Rectifier, and Coil, this is a far superior package to any of the competition.
The X3 models also receive the Lockheed rear axle design but in a larger 25mm diameter. Keeping chain adjustment easy with only 1 nut to loosen, A lighter design than a solid axle but also stronger.
We used high-quality stainless steel material for strength and to look fresh for years to come, finished off with perfectly fitting springs.
|ENGINE & TRANSMISSION
|CB | 4 Stroke | Air-Cooled
|Manual | 5 speed (1N2345)
|Pipe Bomb Exhaust System
|120kph/75mph (depending on gearing)
|SUSPENSION, BRAKES, & WHEELS
|VS1 Inverted Forks | Length 830mm | 53/58.5
|Mono shock | 450mm
|260mm Disc | Dual Piston
|240mm Disc | Single Piston
|Wheel & Tire Front
|Alloy 7075 Rim | 80/100 - 21"
|Wheel & Tire Rear
|Alloy 7075 Rim | 100/90 - 18"
|DIMENSIONS & WEIGHT
|Wheelbase (axle to axle)
|1340mm | 48"
|Product Weight N.W | G.W
|103/122kg | 227/268lbs
|6.3 Litres | 1.6 gallon
|Product Packing Size
|1690x460x830 | .65m3
