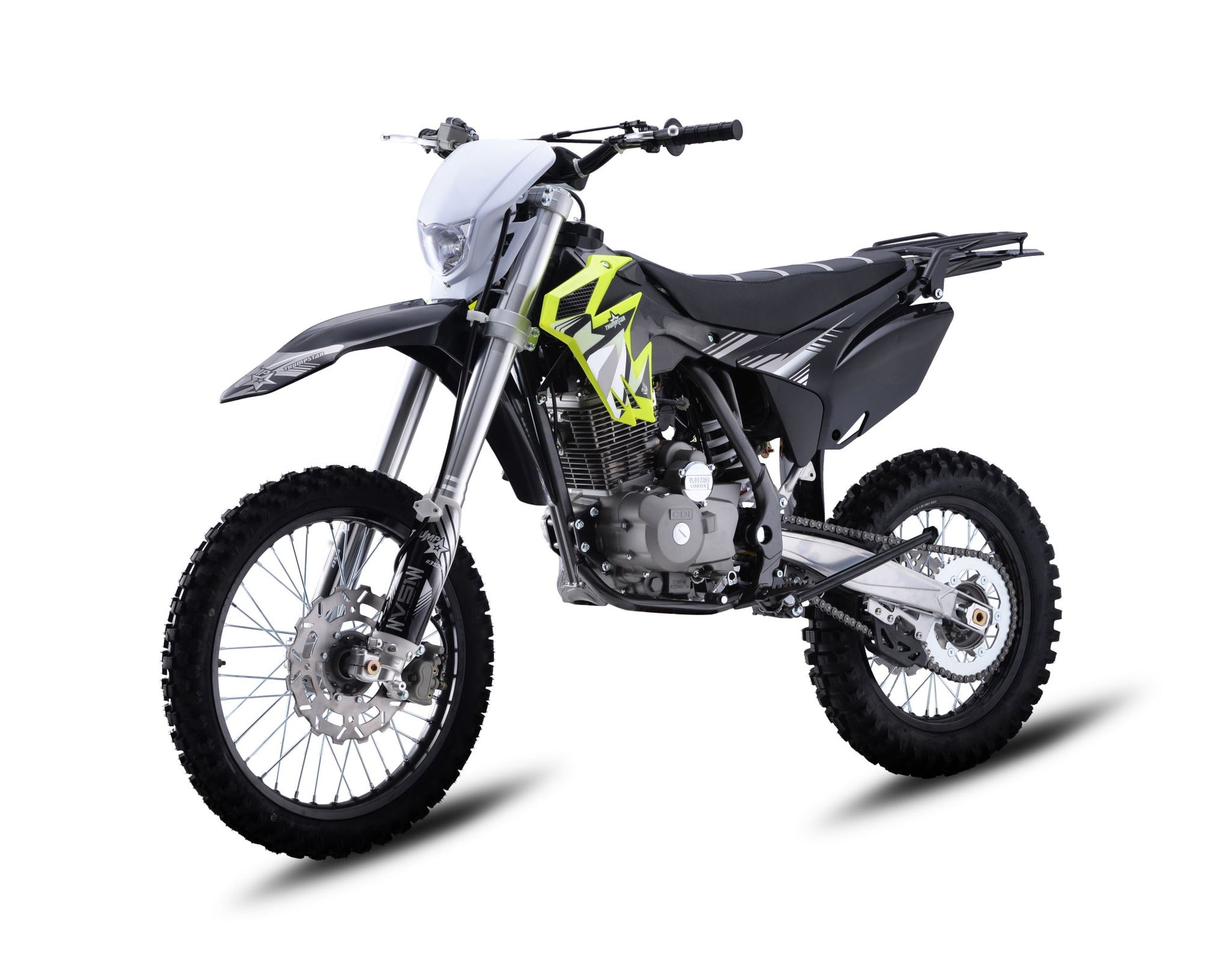

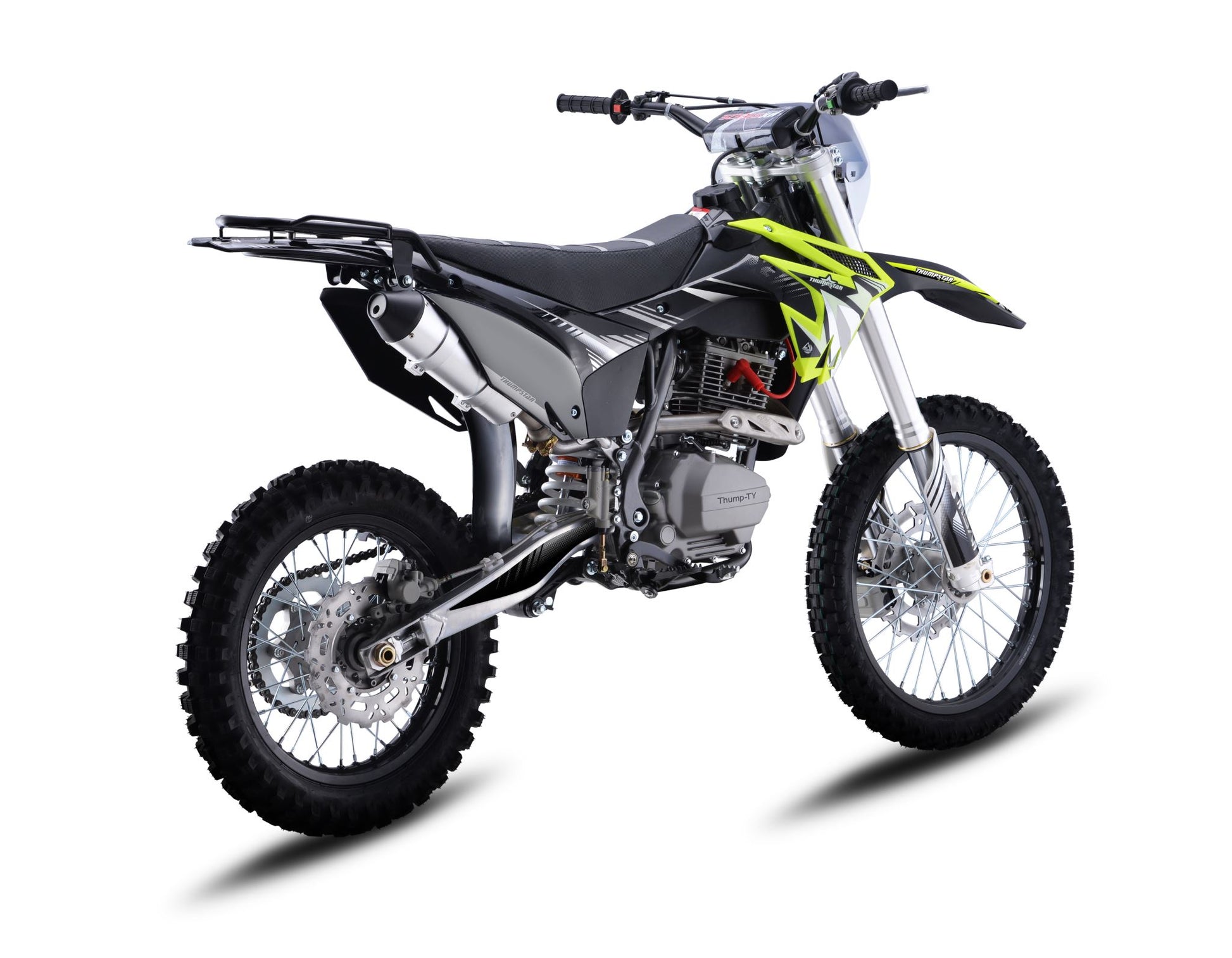

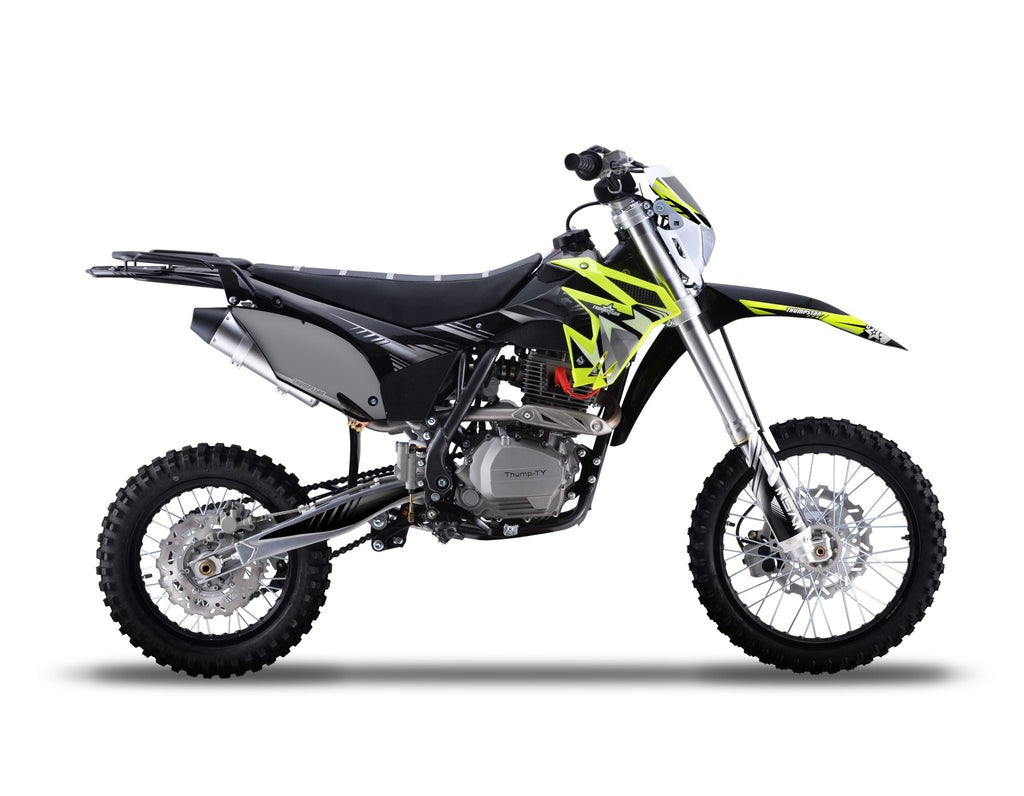

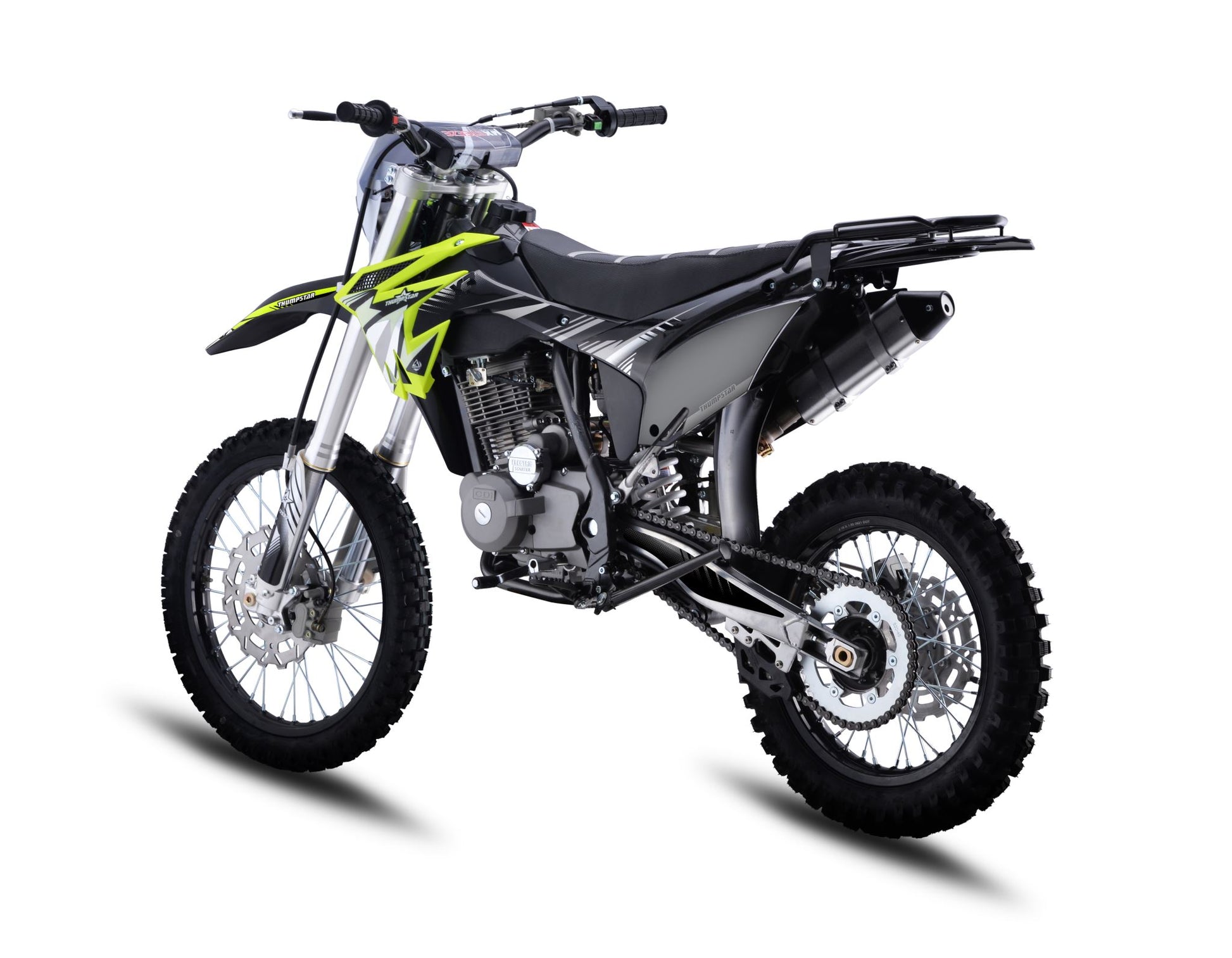

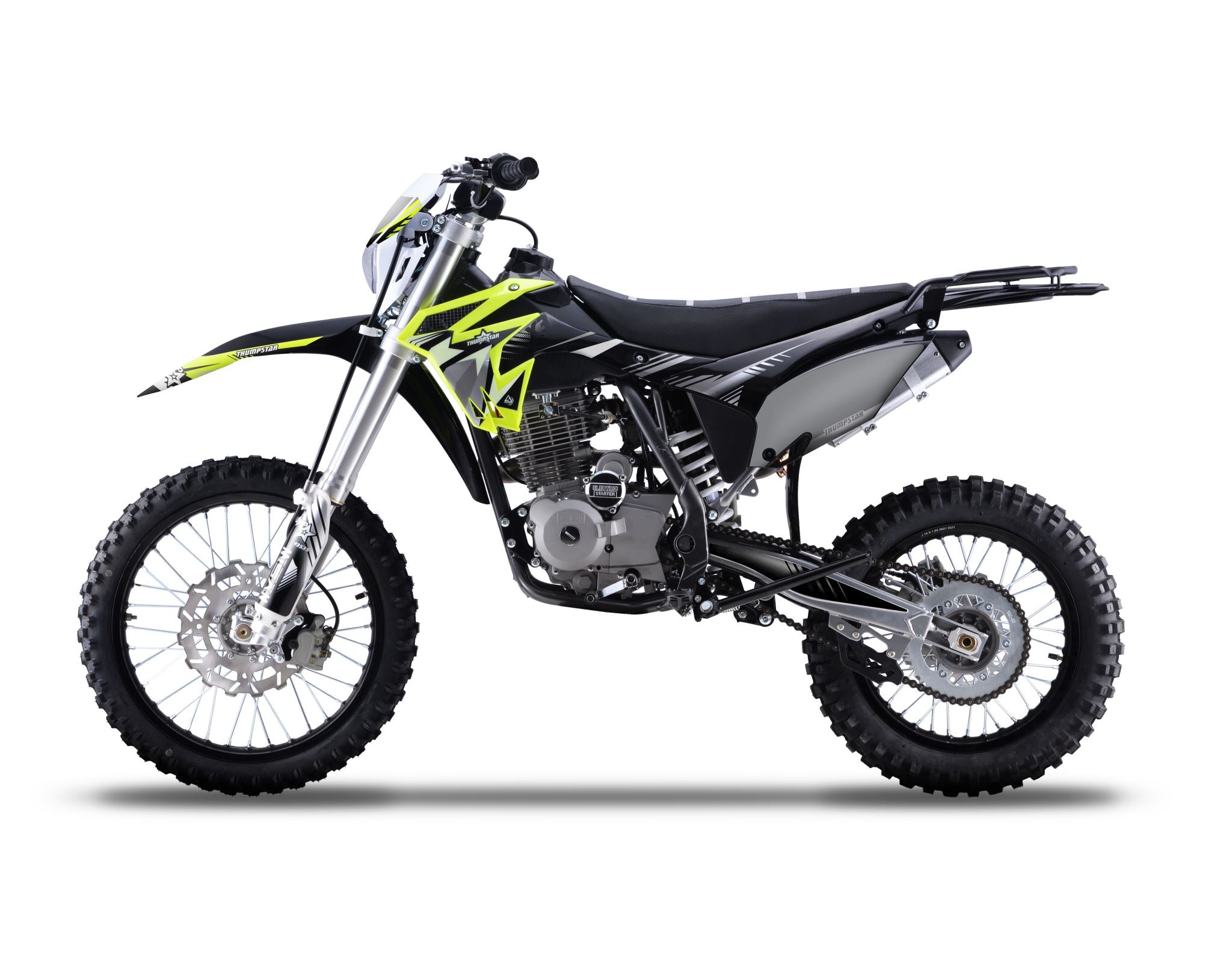

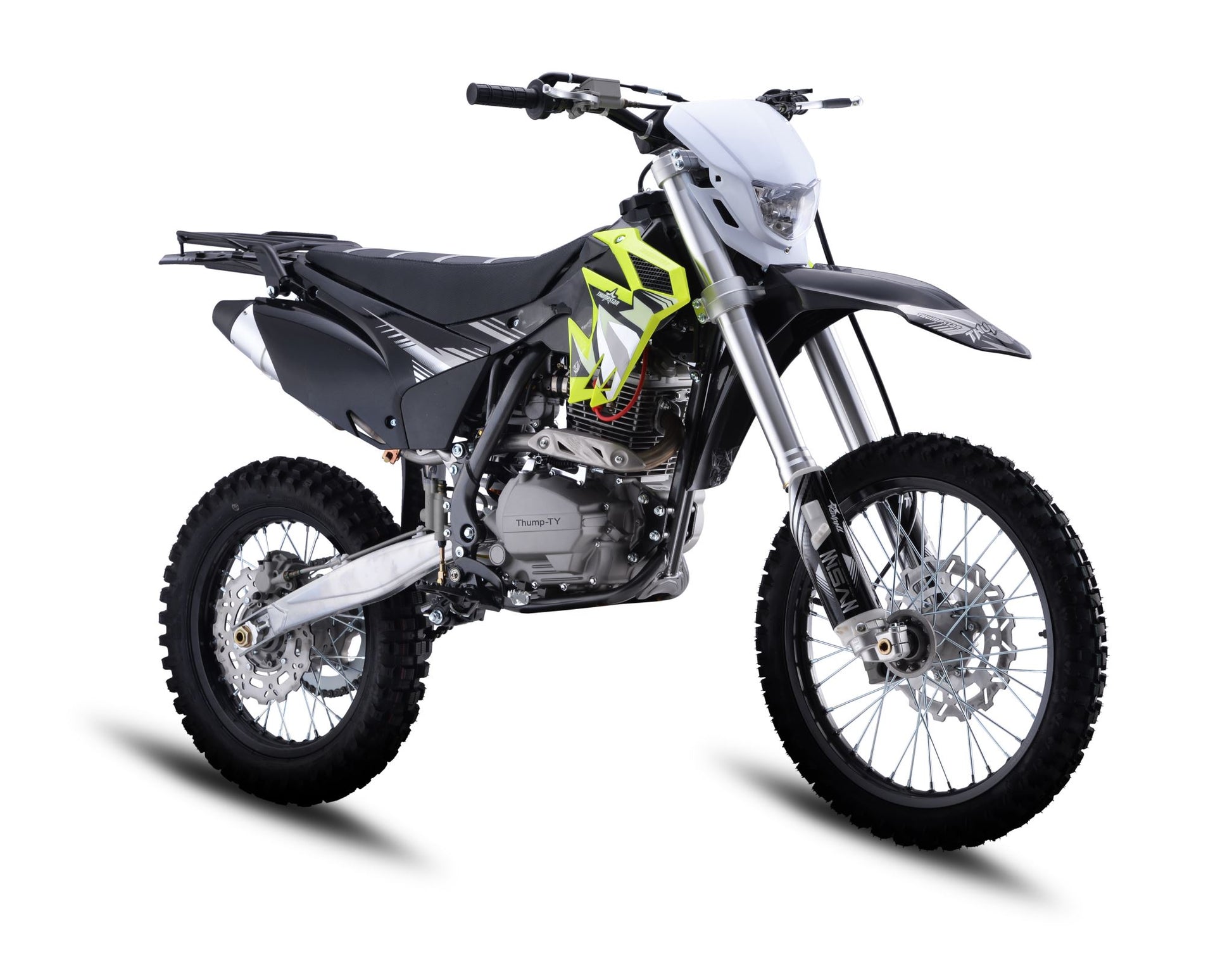

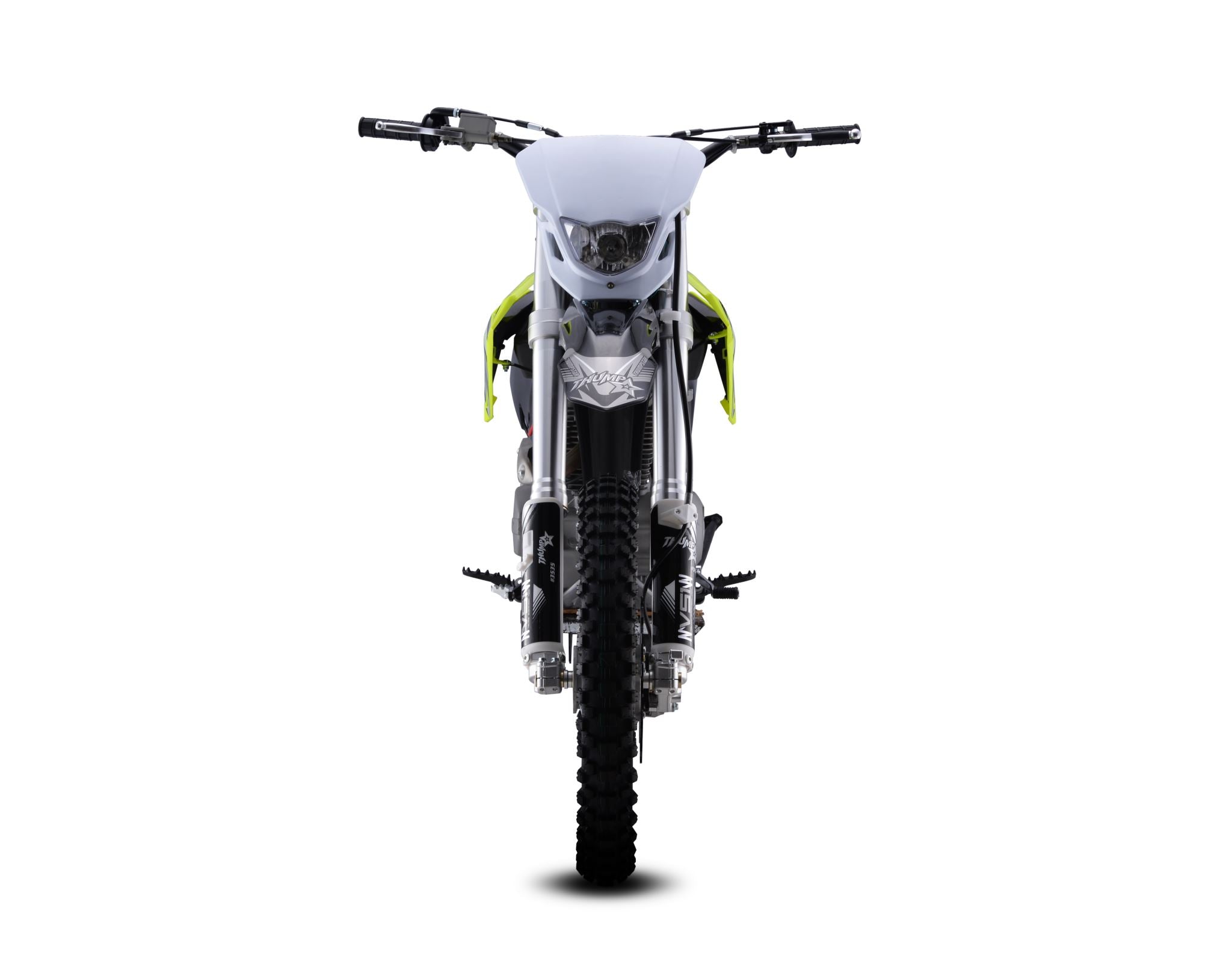

TSF 150cc X3

NO LIMITS MOTO

$2,999.00

Share:
$2999 Crate
$3249 Built + 6 months parts warranty with Thumpstar Australia.
The return of Thumpstar's classic and highly popular 150cc model is exciting news for fans and riders looking for a versatile and well-loved option. Here are some of the key points about this reintroduced model:

1. **Customer Feedback:** Thumpstar has listened to its customers' feedback and demands for the return of the 150cc model. This demonstrates the company's commitment to meeting customer preferences and needs.

2. **Features from the TSX230:** The reintroduced 150cc model incorporates all the features from the TSX230, suggesting that it offers a high level of performance, durability, and technology.

3. **Smaller, Easier to Handle:** This model is described as being smaller and easier to handle. It's likely designed to be more accessible and manageable for a broader range of riders, including those who may prefer a lower seat height or have a smaller stature.

4. **Convenience:** The 150cc model is positioned as a convenient option for riders. This could make it an ideal choice for trail riding, recreational use, or everyday commuting.

5. **Mid-Sized Bike:** For riders looking for a mid-sized bike, the 150cc model can be an excellent compromise between smaller minibikes and larger models. It offers a balance between power and manageability.

The return of this classic model indicates Thumpstar's commitment to offering a diverse range of options to cater to different rider preferences and needs. Riders seeking a versatile and beloved 150cc model with modern features can look forward to exploring this offering. For specific details, specifications, and availability, it's advisable to visit Thumpstar's official website or contact their customer support.

Thumpstar Free Spare Parts Kit

tsf150x3 Frame

Frame

 Updated Frame

In the frame department we have simply taken what works from our proven TSX230 and added a few tweaks here and there for the new X3 format, a sturdy well balanced frame makes handling the trails a treat and keeping that nimble feeling that you get on a little bike.

Wheels

 Lightweight Alloy

Using what we learned in development of our AK7 wheel design, our trail bikes too now have stronger wheels with a 7000 series alloy rim, cast aluminium hubs, large bearings, and stainless spokes for reliability.

TSF 150 X3 Wheels
TSF 150 X3 Suspension

Suspension

VS1 Front Forks

The continuous development of our VS1 suspension system has now allowed us to add VS1 to our latest range of Trail class bikes. Updated triple clamps & new valving allow the front end to handle on all the trails. Comfortable and smooth while not forgetting to let you feel the trail and maintain stability on the more technical tracks.

Exhaust

 Performance

A redesigned frame came with requirements for a new exhaust header. The new head pipe from Thumpstar allows exhaust gasses to expand, cool, and ramp back up at a higher velocity when exiting. This results in a greater bottom, and low-end response while keeping the tuning in check for the top end.

TSF 150 X3 Header
TSF 150 X3 Linkage

Linkage

Swingarm and Linkage developments

Updated X3 linkage geometry helps keep your rear shock in check for smooth rides over rough terrain and putting the power to the trail when needed. Ride the trails for longer, in more comfort with progressive rear shock performance.

Engine

TY Electric start

Our famous TY engine in 2 sizes TSF150 and TSF230 maintains the strength and reliability found within our 1st full size bike (TSX230) now in a trail specific format.

TSF 150 X3 Engine
TSF 150 X3 Airbox

Airbox

 Updated Flow

Continuing the update trend but also sticking to what works, here you will find the dual layer caged air filter and stainless mesh filter in the tried and tested airbox design that doesn’t restrict airflow. Whether you are on a dusty trail or get caught in the rain the X3 Airbox will help keep you going.

Waterproof Electronics

 Waterproof Connectors

All of our new bikes come equipped with redesigned looms and electronics. We have done away with single flimsy wires and connectors, and replaced them with heavy duty multi core wiring, and sturdy connectors. Accompanied by water proof plugs and electronics such as the Revking CDI, Rectifier, and Coil, this is a far superior package to any of the competition.

TSF 150 X3 Wiring
TSF 150 X3 Rear Axle

Rear Axle

 Lockheed Design

The X3 models also receive the Lockheed rear axle design but in a larger 25mm diameter. Keeping chain adjustment easy with only 1 nut to loosen, A lighter design than a solid axle but also stronger.

Footpegs

 Durable

We used high-quality stainless steel material for strength and to look fresh for years to come, finished off with perfectly fitting springs.

TSF 150 X3 Footpegs

Colours

Thumpstar Colours

Free Spare Parts Kit

Thumpstar Free Spare Parts Kit

Product Packaging

Pitbike Assembly & Servicing

Specifications

ENGINE & TRANSMISSION
Engine TY | 4 Stroke | Air-Cooled
CC Rating 150cc
Gearbox Manual | 5 speed (1N2345)
Starter Electric Start
Carburetion PE 28mm
Exhaust Pipe Bomb Exhaust System
Final Drive 520 Chain
Top Speed 120kph/75mph (depending on gearing)

SUSPENSION, BRAKES, & WHEELS
Suspension Front VS1 Inverted Forks | Length 830mm | 53/58.5
Suspension Rear Mono shock | 450mm
Brakes Front 260mm Disc | Dual Piston
Brakes Rear 240mm Disc | Single Piston
Wheel & Tire Front Alloy 7075 Rim | 80/100 - 17"
Wheel & Tire Rear Alloy 7075 Rim | 100/90 - 14"

DIMENSIONS & WEIGHT
Wheelbase (axle to axle) 1340mm | 48"
Seat Height 930mm
Product Weight N.W | G.W 103/122kg | 227/268lbs
Tank Capacity 6.3 Litres | 1.6 gallon
Product Packing Size 1480x455x830 | .65m3
